Huma-Air MOD40X Quick Detach Modular Air Moderator

Huma-Air MOD40X H-LOC QD Modular Air Moderator

The flagship of our well known MOD40 Modular Moderator series; the MOD40X H-LOC Quick Detach model combines excelent sound moderating, ultra low weight and our Huma-Air H-LOC intergrated quick connect system.

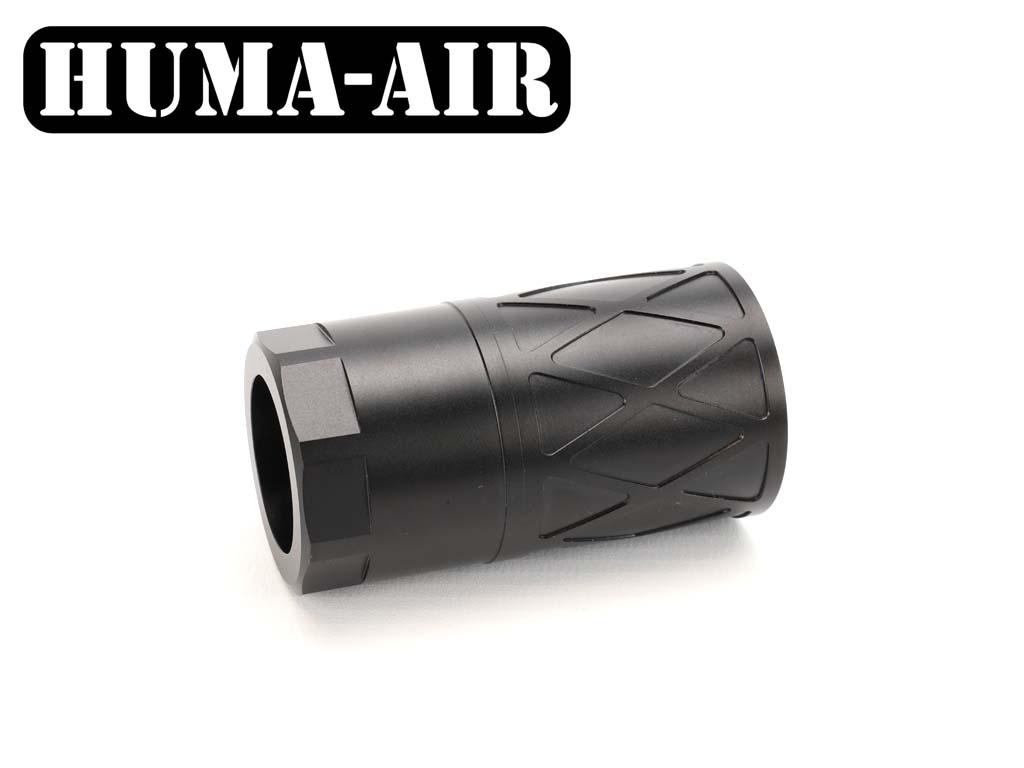

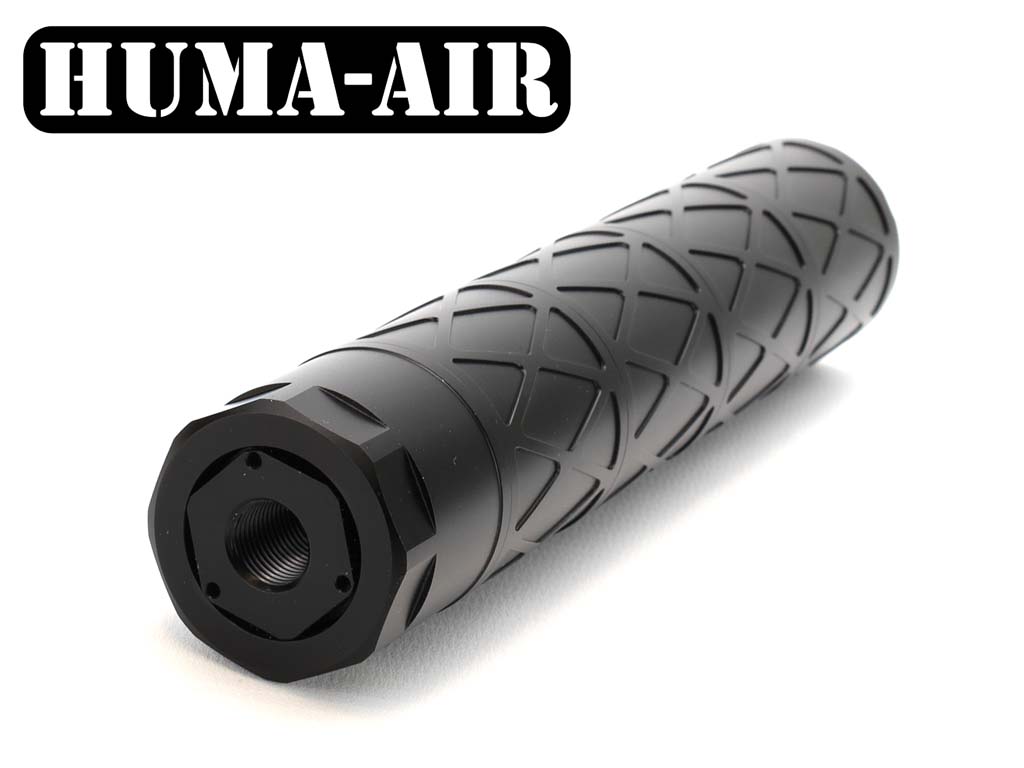

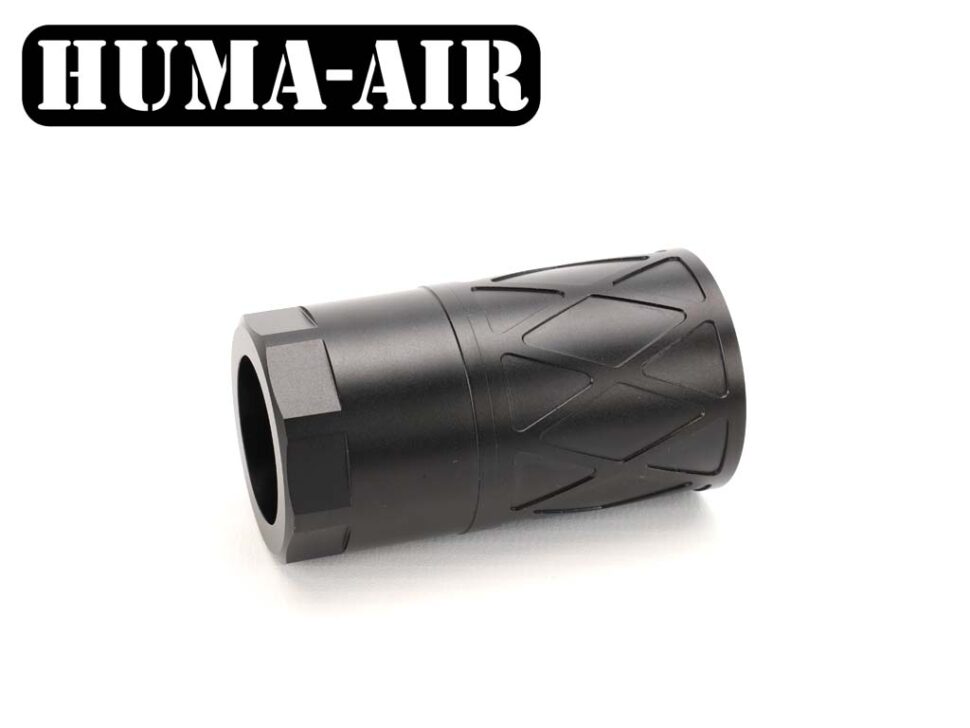

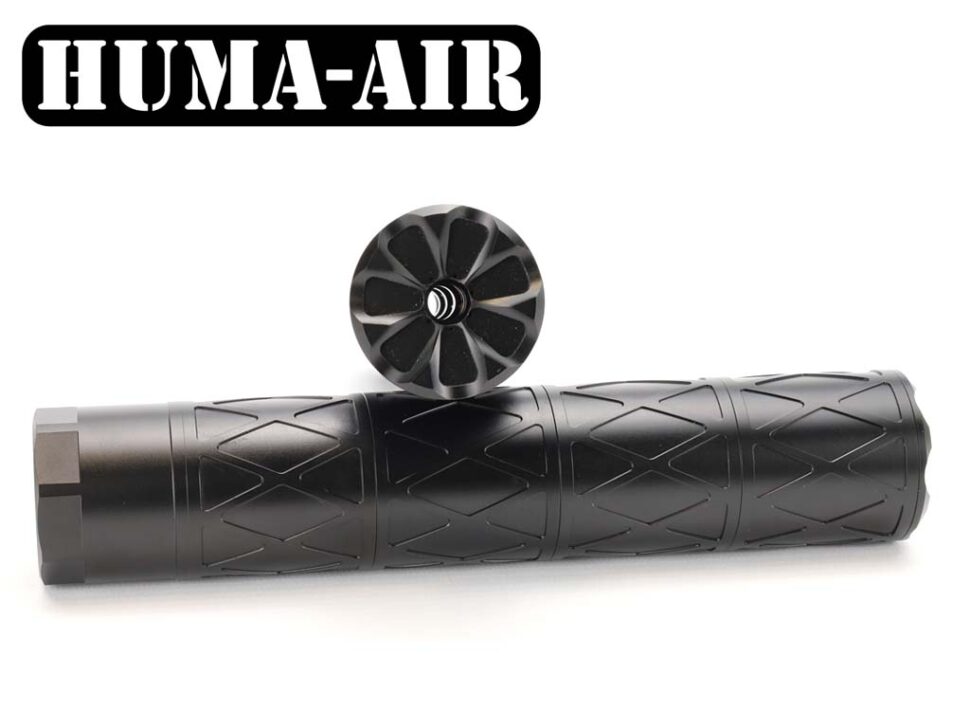

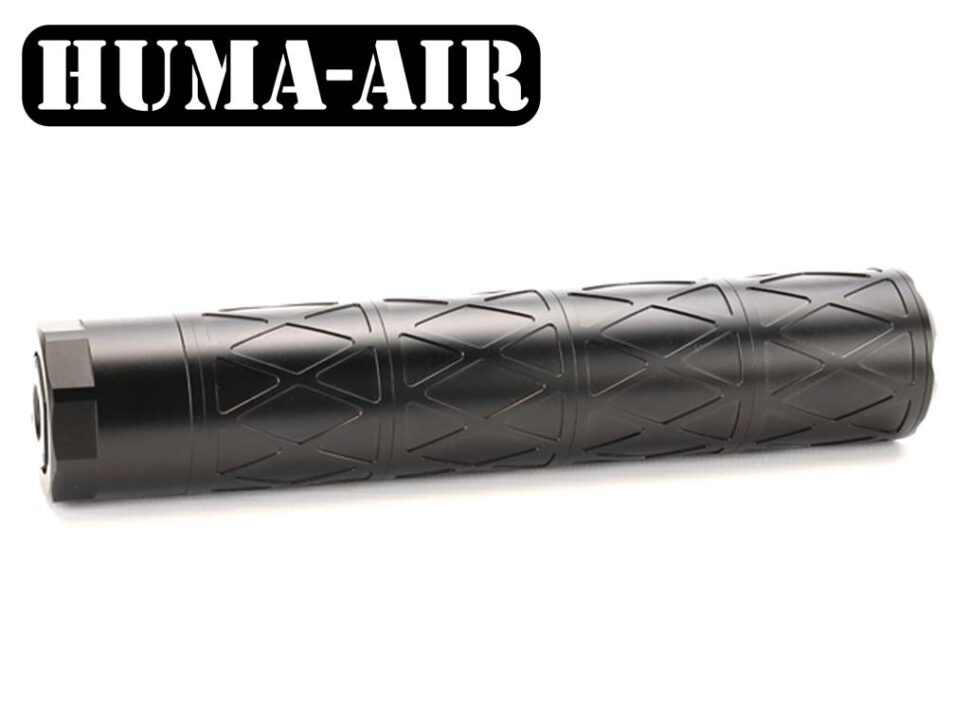

The MOD40X moderator, consists of four modular aluminum modules, where in the first module is provided with our Huma-Air H-LOC Quick Detach Adaptor. This H-LOC quick detach system allows you to attached your moderator, virtually seamless, with just a 1/3 turn to your barrel. Because the H-LOC system is based on a special threaded connection, the moderator is always locked firmly on your airrifle barrel without any chance of slack or movement.

The H-LOC QD systeem consists of a barrel part that screws on the threaded part of your barrel (H-LOC B) and the other part is integrated in the moderator. (H-LOC-M)
The H-LOC B  barrel adapters can be chosen for different diameter barrel types, and they are also seperately available so that you can convert any air rifle into a quick detach moderator system.

By creating the X profile we have succeeded in achieving major weight savings; with just ca 220 gram this moderator is one of the lightest, full aluminum, air moderator for airguns in the industry.

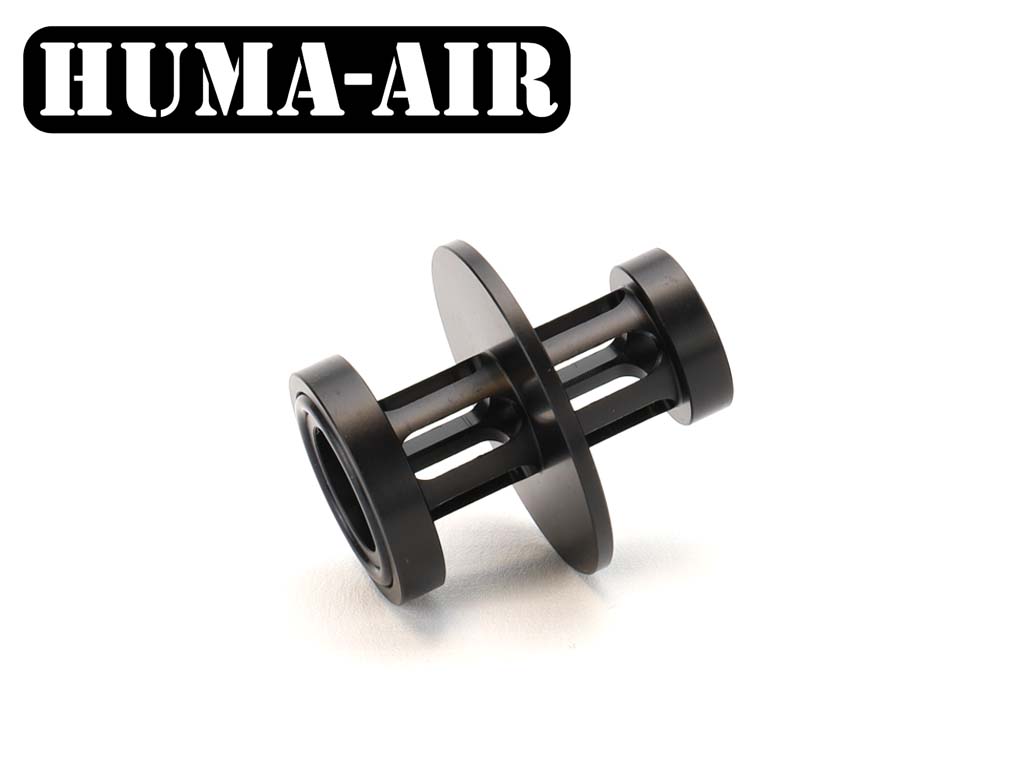

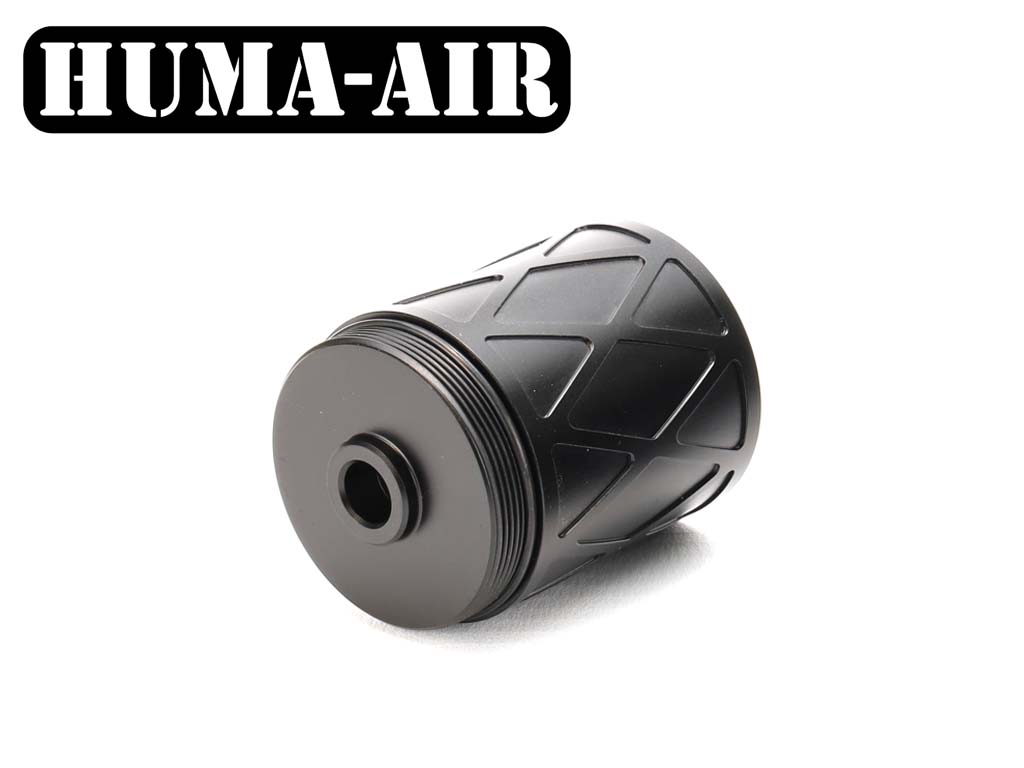

All four modules of the Huma-Air MOD40X moderator are machined out of one piece aircraft aluminum as a fixed expansion chamber and next to this, all modules are filled with a CNC produced insert made of technical polymer Pom-C with a special geometry to reduce the sound of the air blast to an absolute minimum.

Due to the modular build of all our moderators, this system allows you to configure your own silencer in term of length, caliber and even content of the internal silencer chambers; you can add or remove volume chambers to change length and volume of the moderator.

The benefits of the Huma-Air MOD40X H-LOC QD Modulair Airgun Silencer:

• Maximum sound reduction due to the fixed chambers system with Polymer inserts
• Fully integrated H-LOC quick detach system to fit your moderator to your barrel
• Interchangeable connection adapters with different screw threads available, (1/2UNF-20, M14 x 1.25 or H-LOC QD system)
• Ad extra, or remove modules to the moderator for every possible setup.
• Precision machined X-profile, ultra light weight volume chambers.
• The possibility to make the silencer rifle specific, will allow you to reduce the output noice to an absolute minimum.
• You can also choose to use maximum volume, without the standard inserts in the volume chambers.
• The system is caliber specific in a combined .177 /.22 version, a .25 and a .30 model. Of course you can use a .25 model also for .22 and .177 too.

Please Note:

When you want to change the threaded connection of the moderator you need this tool and use a medium strength treadlocker to fixate the adaptor to the moderator. A threadlocking adhesive like Loctite® 2400 would be fine.

Huma-Air moderators are suitable for air gun use only!
